CRIMPING for Curved Roofs / Canopy
The crimped sheets are essential used for curved roofs
as this crimped sheets are manufactured from normal
trapezoidal profile sheet with required bending as per
structure requirement.
Different types of Crimped profiled sheets are used as below-
- Profile Ridge - Roof Cover
- Profile Canopy - Gate Cover
- Profile NLC - Shade cover from Roof to Cladding
- Profile Curvature - overlapping.
- The different Criping accessories are used at Church, curved roofs, cover sheet on the window, etc.,

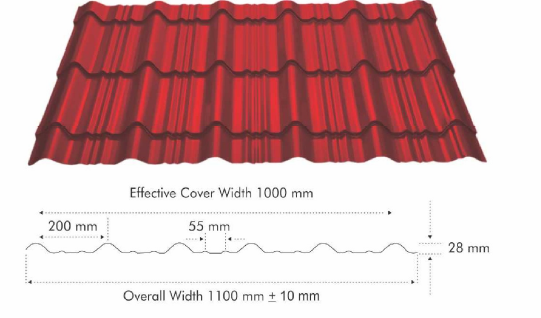

TRAPEZOIDAL PROFILE
Product Specification
| Coating | Color Coated Galvalume IS277 / Zinc Aluminum Alloy Coated As 1397 |
| Hardness (MPA) | 240-550 |
| Guard film-optional (Microns) | 30-40 |
Technical Specification
| Covered Width | 1000 mm |
|---|---|
| Supply Width | 1060 mm |
| Pitch | 200 mm |
| Crest Height | 29 mm |
| Crest Width | 24 mm |
Pre-Painted Galvalume
| Thickness (TCT) | 0.30 to 080 mm |
|---|---|
| Substrate | Galvalume (55% Aluminium-43% Zinc Coating 70 to 200 gsm) |
| Output Sheet Length | As per requirement |
| Coating Material | Regular Modified Polyester (RMP) |
| Primer Coating Thickness | Top = 7µ max, Bottom = 7µ max |
| Finish Coating Thickness | Top = 25µ max, Bottom = 5µ max |
| Colours | As per RAL Code / Customer Requirement |
| Profile Available | Trapezoidal Double Ribbed |
| End Use | Roofing & Cladding-Domestic, Industrial, Warehousing etc., |
Pre-Painted Galvalume
Sky / Light Blue
Off / Half White
Brick / Autumn Red
Mist Green
Nuva / Royal Blue
Caulfield / Bottle Green
Pebble Beige
Torres / Taurus Blue
Bare Galvalume
